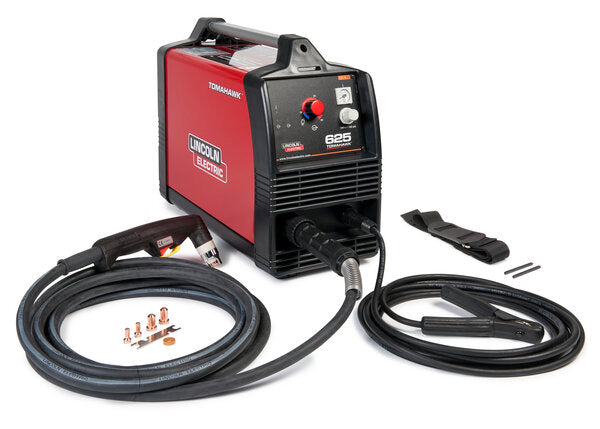

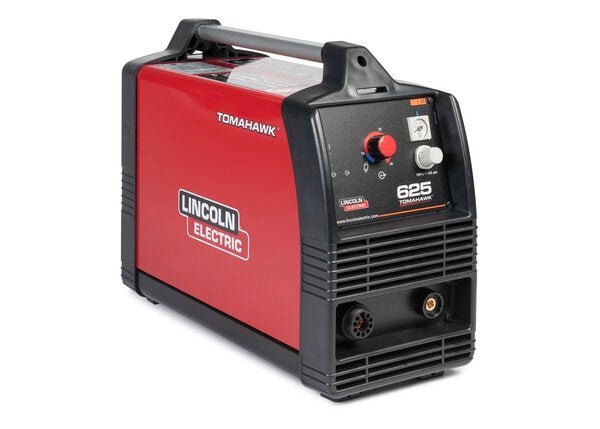

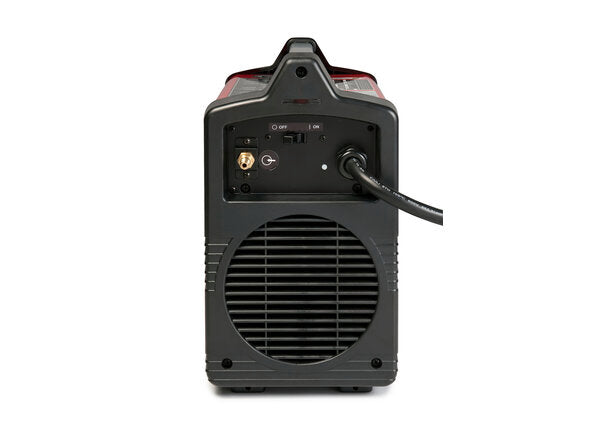

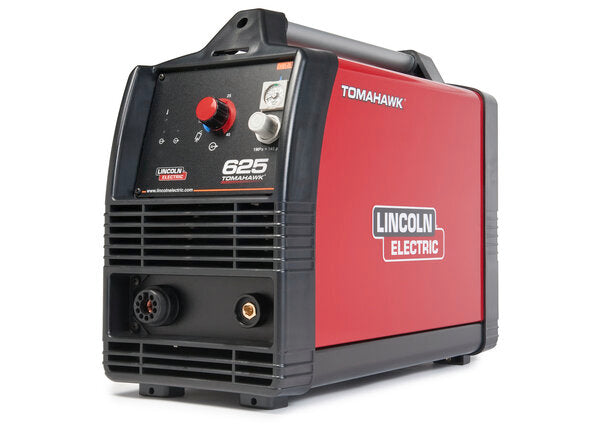

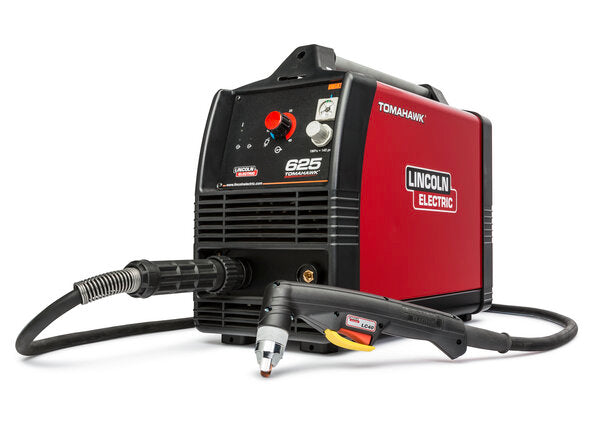

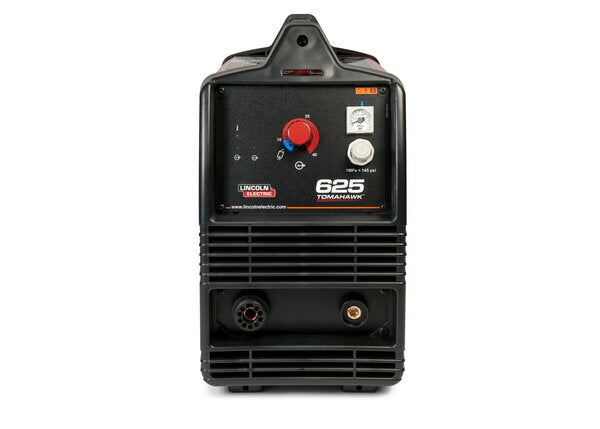

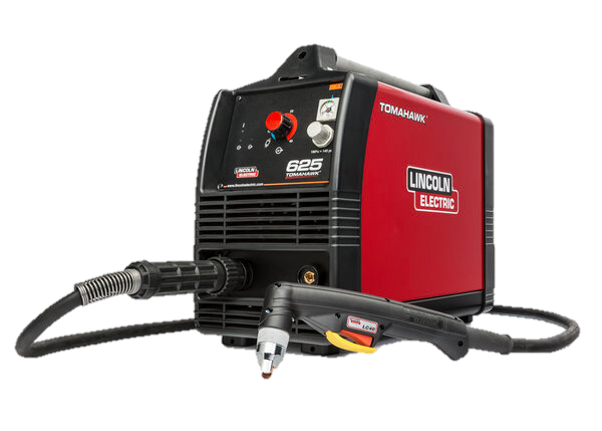

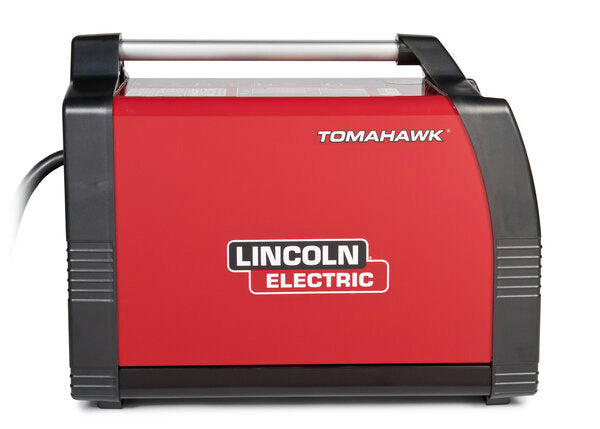

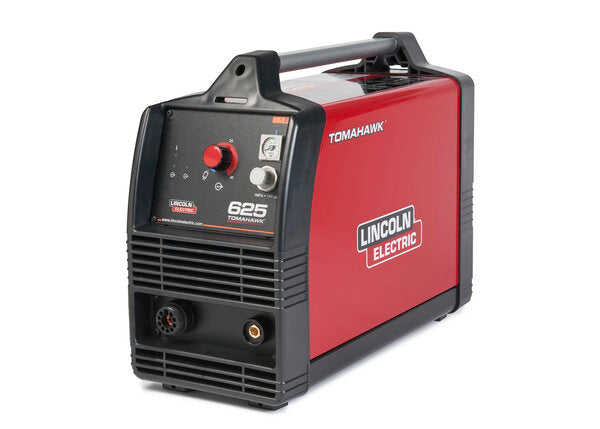

Tomahawk® 625 Plasma Cutter with 20 ft (6.1 m) Hand Torch

Description:

• Plasma Cutting - Anywhere, Anytime

Features:

• strong>Lightweight and Portable – Easily carried by one person.

• Continuous Output Control – Focus the arc for different material thickness.

• Touch Start System – Reliable plasma arc initiation without high frequency.

• Rapid Arc Restrike – Fast cutting through gaps, even expanded metal.

• Cool Operation, Long Consumable Life - New electrode and nozzle design helps you save money in the long run.

• Added Safety – Our Parts-in-Place system detects correct installation of consumables and torch.

• Engine Drive Compatible – Select a Lincoln Electric Ranger® or Vantage® to power your Tomahawk® in remote locations.

Specifications

Product Weights & Dimensions

• Dimensions (H x W x D) - 15.2 in x 8.5 in x 18.9 in (385 mm x 215 mm x 480 mm)

• Net Weight – 34 lbs (15.42 kg)

Plasma Machines

• Torch Included – Yes

• Gas Supply – Air or Nitrogen

• Gas Pressure Required - 80 - 110 psi (6 -7.5 Bar)

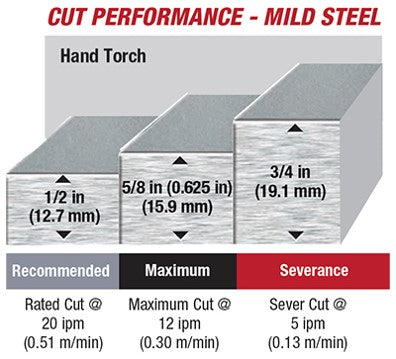

• Recommended Cutting Capacity (Mild Steel) (In/ft) - 1/2 in @ 20 ipm

• Recommended Cutting Capacity (Mild Steel) (mm/M) – 12.7 mm. @ .51 m/min

• Maximum Cutting Thickness (Mild Steel) (ln/Ft) - 5/8 in @ 12 ipm

• Maximum Cutting Thickness (Mild Steel) (mm/M) - 15.9 mm. @ .30 m/min

• Maximum Severance (Mild Steel) (In/Ft) - 3/4 in @ 5 ipm

• Maximum Severance (Mild Steel) (mm/M) - 19.1 mm. @ .13 m/min

Warranty

Warranty - 3 Year on Machine, 1 Year on Torch
