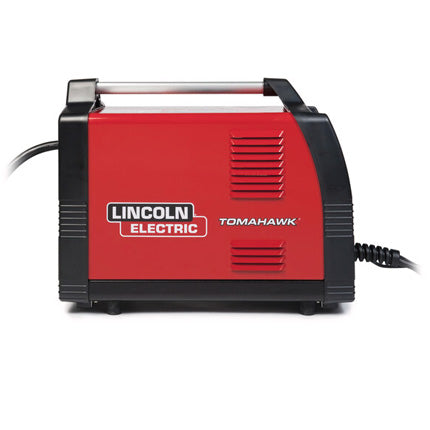

Tomahawk® 375 AIR Plasma Cutter with 10 ft (3.0 m)

Description:

Plasma Cutting - Anywhere, Anytime

The Tomahawk® 375 Air plasma cutting system arrives ready to go for fast and precise cutting. With the 375 Air, forget the grinder – pick up the torch and cut in seconds.

Features:

• Ultimate Portability – Internal air compressor enables operation in environments where external compressed air is not available.

• Continuous Output Control – Focus the arc for different material thickness

• Touch Start System – Reliable plasma arc initiation without high frequency.

• Rapid Arc Restrike – Fast cutting through gaps, even expanded metal.

• Front Panel Purge Control – Makes it easy to set the airflow rate without initiating the plasma arc.

• Cool Operation, Long Consumable Life - New electrode and nozzle design save you money in the long run.

• Added Safety – Our Parts-in-Place system detects the correct installation of consumables and torch.

• Engine Drive Compatible – Select a Lincoln Electric Ranger® or Vantage® to power your Tomahawk® in remote locations

Specifications:

• Machine Inputs & Outputs



  Phase 1: Input Voltage #1 (Voltage/Phase/Hertz): 208/230/1/60
  Phase 1: Rated Output #1A (Current/Voltage/Duty Cycle): 13A/85.2V/100%
  Phase 1: Rated Output #1B (Current/Voltage/Duty Cycle): 18A/87.2V/60%
  Phase 1: Rated Output #1C (Current/Voltage/Duty Cycle): 25A/90V/35%
  Phase 1: Input Current at Max Rated Ouput #1 (Current): 21.7A



• Product Weights & Dimensions



  Dimensions(H x W x D): 15.2 in x 8.5 in x 18.9 in (385 mm x 215 mm x 480 mm)
  Net Weight: 40 lbs (18 kg)



• Machines

  Machines Processes: Plasma Cutting
  Max Rating: 25A





• Plasma Machines

  Torch Included: Yes
  Gas Supply: Air or Nitrogen
  Gas Pressure Required: 80 - 110 psi (6 -7.5 Bar)
  Recommended Cutting Capacity (Mild Steel) (In/ft): 5/16 in. @22 ipm
  Recommended Cutting Capacity (Mild Steel) (mm/M): 7.9 mm. @ .56 m/min
  Maximum Cutting Thickness (Mild Steel) (ln/Ft): 3/8 in. @ 14 ipm
  Maximum Cutting Thickness (Mild Steel) (mm/M): 9.5 mm. @ .36 m/min
  Maximum Severance (Mild Steel) (In/Ft): 1/2 in. @ 5 ipm
  Maximum Severance (Mild Steel) (mm/M): 12.7 mm. @ .13 m/min



• Basic Specification

  Output Range: 10-25A
