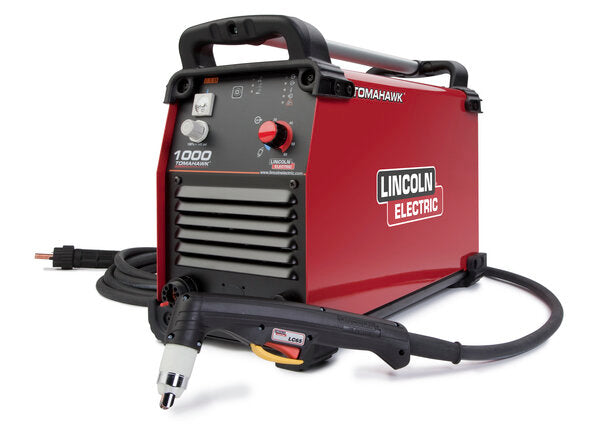

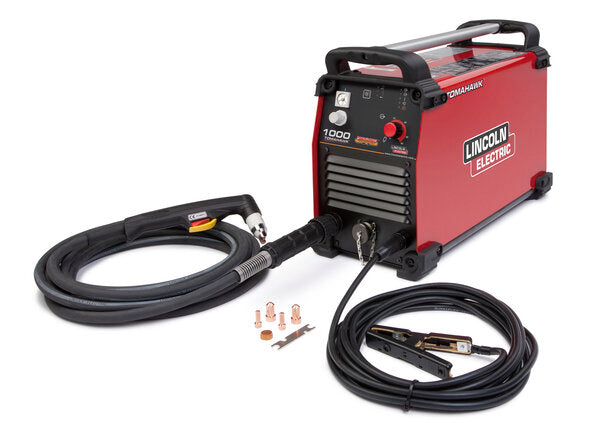

Tomahawk® 1000 Plasma Cutter with 25 ft (7.6 m) Hand Torch

Description:

• Plasma Cutting for Production Capacity

The Tomahawk 1000 plasma cutting system is portable enough to use on the jobsite and rugged enough to use on up to one inch material in a production environment. Hook up the compressed air, grab the torch and start cutting.

Features:

• PowerConnect® Technology - Automatically senses and adjusts to input power for a range of 200 up to 600 volts, single or three phase, 50 or 60 hertz. Cutting output remains constant throughout the entire input voltage range.

• Continuous Output Control - Focus the arc for different material thicknesses.

• Touch Start - Reliable plasma arc initiation without high frequency.

• Front Panel Purge Control - Makes it easy to set the air flow rate without initiating the plasma arc.

• Cool Operation, Long Consumable Life - New electrode and nozzle design save you money in the long run.

• Added Safety - Our Parts-in-Place - System detects correct installation of consumables and torch.

• Engine Drive Compatible - Select a Lincoln Electric Ranger® or Vantage® to power your Tomahawk® in remote locations.

• Optional Machine Torch - Available for use on CNC plasma cutting table.

Specifications

Product Weights & Dimensions

• Dimensions (H x W x D) - 15.2 in x 8.5 in x 22.1 in (385 mm x 215 mm x 561 mm)

• Net Weight – 45 lbs (20.4 kg)

Plasma Machines

• Torch Included – Yes

• Gas Supply – Air or Nitrogen

• Gas Pressure Required - 87 - 109 psi (6.0 - 7.5 Bar)

• Recommended Cutting Capacity (Mild Steel) (In/ft) - 3/4 in @19 ipm

• Recommended Cutting Capacity (Mild Steel) (mm/M) – 19.01 mm @ 0.51 m/min

• Maximum Cutting Thickness (Mild Steel) (ln/Ft) - 1 in @10 ipm

• Maximum Cutting Thickness (Mild Steel) (mm/M) - 25.4 mm @ 0.30 m/min

• Maximum Severance (Mild Steel) (In/Ft) - 1 1/4 in @ 5 ipm

• Maximum Severance (Mild Steel) (mm/M) - 31.75 mm @ 0.13 m/min

Warranty

Warranty - 3 Year on Machine, 1 Year on Torch
